Product Description
Metal IP66

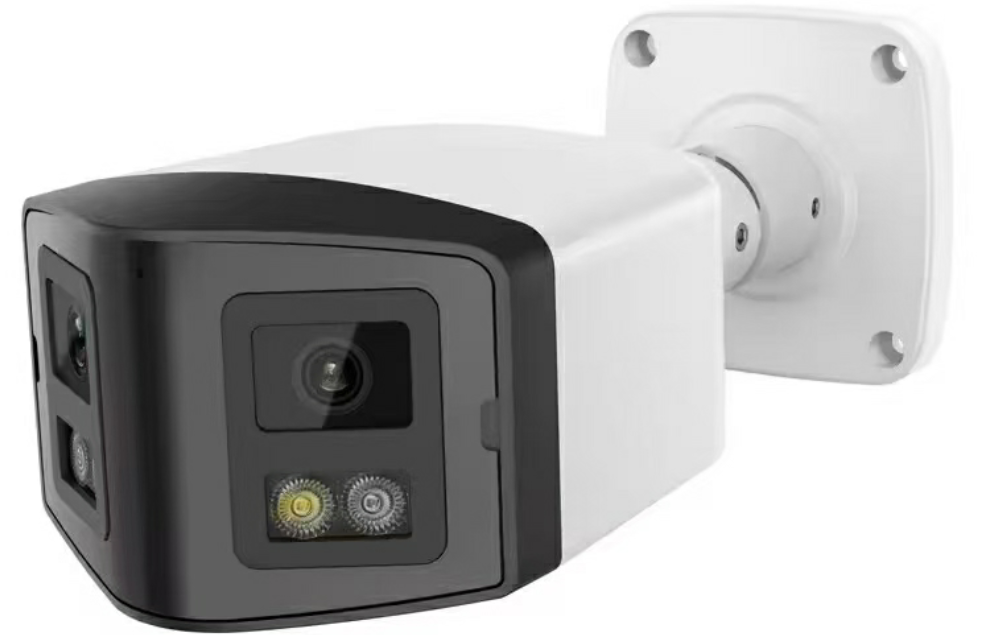

| Model NO. | RV-P8A |
| Camera | |
| Image Sensor | 1/2.7" CMOS sensor GC5653 *2pcs DSP: MSC359G |
| Resolution | 8MP |
| Effective Pixels | 4096*1944/20FPS |
| Compression | H.264/H.265/H.265+ |
| Audio Compression | G711A |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.05 Lux@(F1.6, AGC ON), 0 Lux with white light, B/W: 0 Lux with IR |
| S/N Ratio | 120dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Lens | |
| Focal Length & FOV | 2.8 mm, horizontal FOV 180°, vertical FOV 68.8° |
| Lens Type | Fixed focal lens, 2.8 mm x 2pcs |
| Focus Control | Fixed |
| Aperture | F1.6 |
| Pixels | 5MP |
| Night Vision | |
| Supplement Light | IR 2PCS |
| Warm light 2PCS | |
| Supplement Light Distance | IR 30m |
| Warm light 30m | |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Wireless | option |
| Protocol | HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P,SMTP,RTMP |
| ONVIF | Support ONVIF |
| P2P | YES |
| POE | Internal, Support IEEE 802.3af |
| Video Delay | 0.3S (Within the Lan) |
| Main Stream 1 | 20 fps 4096 × 1944 |
| Sub Stream 1 | 50Hz: 20 fps 1024 x 480 ；20 fps 768 x 360 |
| Sub Stream 2 | 60Hz: 20 fps 1280 x 360 ；20 fps 768 x 360 |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| AI Function | Human detection，Motion detection |
| Intelligent Analysis | Intrusion Detetion(based on human and Vehicle Detection), Line Cross Detetion(based on human and Vehicle Detection), Loiter Detetion(based on human detection), People Gather Detecion(based on human detection), Motion detection based on human detection, Enter Area(based on human and Vehicle Detection), Leave Area(based on human and vehicle Detection) |
| Camera Features | |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser |
| Full Color | Support, |
| Image Enhancement | WDR/HDR/3D DNR/2D DNR/HLC/BLC |
| Motion Detection | Support(support enable the detection based on human movement only) |
| Recording Mode | NVR/CMS/Web/SD Card |
| Language | 14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi |
| Audio | Default: Built in Mic+Built in Speaker |
| Option: Audio I/O | |
| Alarm | Default: Alarm I/O |
| SD Card Slot | Default: External SD card slot (Max 512GB) |
| Housing | Metal |
| Anti-cut Bracket | YES |
| IR Cut Filter | YES |
| Operation Temperature | -30℃ ~ +65℃ RH95% Max |
| Storage Temperature | -20℃ ~ +65℃ RH95% Max |
| Power Source | DC12V±10%, 950mA |
| Dimension | Camera: 236.1 × 110 x 74mm (9.29" × 4.33 x 2.91"),Package: 270× 125 × 110 mm (10.6" × 4.92" × 4.3" ) |
| Weight | 660g |
