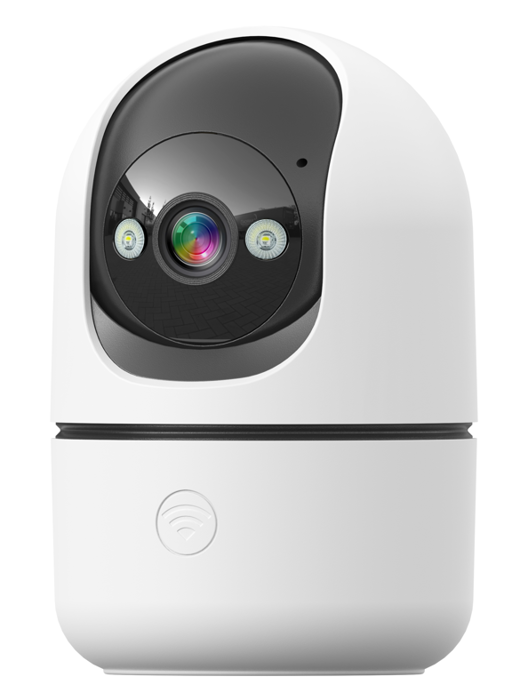

RV-106AI300
3.6mm/F1.6
0.00
0.00
Product Description
3.6mm/F1.6
| 106AI300 | *3MP smart cloud camera (excluding TF Card) X 1 * Specification X1 * Screw pack X1 * Power adapter X1 * Power cord X1 | ||
| Packing box size(mm)/weight(kg) | 152*88*88mm/0.28KG | ||
| Outer box size(mm)/weight(kg) | 460*320*460mm/16KG/50pcs | ||
| Specification parameter | |||
| system | Main Processor | Dual-core 32-bit DSP (GK7202 V300), pure hard compression, watchdog，Sensor: H63 | |
| image sensor | high-performance CMOS sensor | ||
| Operation System | Embedded LINUX OS system | ||
| Video Compression | Smart H.265X | ||
| APP | ICSEE(support andriod and IOS) | ||
| Video | High Definition | 3MP | |
| Image resolution | 2304*1296@12FPS&800*448@12FPS | ||
| Minimum illumination | 0.01LUX/F1.2 | ||
| Lens | 2.8mm | ||
| Perspective | 105° | ||
| Turn video | Upside down/Turn around | ||
| lighting | Light control mode | Infrared night vision | |
| Number of lights | 6PCS IR LED | ||
| PTZ | PTZ control | Rotation Angle level :355°; Vertical: 90 ° | |
| Turn PTZ | Upside down/Turn around | ||
| Audio | Coding standard | G.711 | |
| Mitou | Support | ||
| Two-way Speech | Support | ||
| Record management | Video file size | ≈6G/day | |
| Record Mode | Manual record, motion detection record, scheduled record, alarm record | ||
| Video storage | TF Card/Cloud | ||
| storage | support TF card（max 128GB) or cloud storage | ||
| Remote playback | Support | ||
| Image capture | Support | ||
| Network | WIFI | 2.4G WIFI 802.11b/g/n | |
| Pairing | Sweep QR code，Network Cable connection，AP Hotspot Addition | ||
| Network Protocol | Support TCP/IP, ONVIF, RTSP | ||
| extension | Reset key | Support | |
| Human tracking | Support | ||
| 360degree coordinate positioning | Support | ||
| power supply | Power | DC 5V 1.6A | |
| power interfac | Micro Type-C | ||
| work environment | Suitable place | outdoor、Home、shop、School、factory； | |
| Installation mode | Wall hanging, lifting, flat | ||
| Working Temperature | -20℃－＋55℃ | ||
| Working humidity | 10%－90% | ||
