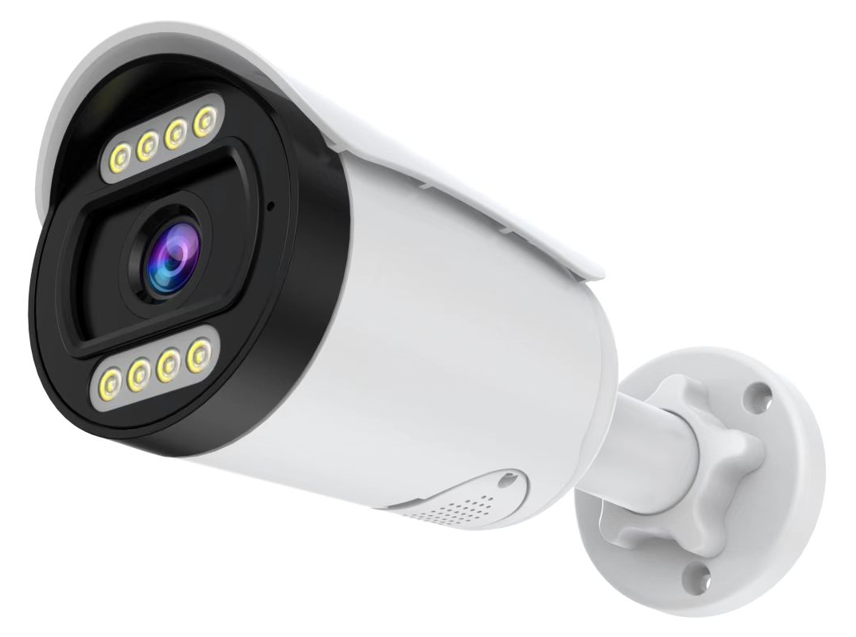

RV-DB8VIP500GND
2.7-13.5mm electric focusing
0.00
0.00
Product Description
2.7-13.5mm electric focusing
| Model NO. | RV-DB8VIP500GND | ||
| Camera | |||
| Image Sensor | IMX335（1/2.8') | ||
| Main processor | GK7205V300 | ||
| Resolution | 6.0MP | ||
| Effective Pixels | 6MP 3072*2048@20fps；5MP 2592*1944@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps | ||
| Compression | H.265+/H.265/H.264/H.264+ | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | ≥80dB (0.0001Lux@F1.2) | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | Double 3015U×8 | ||
| Infrared Distance | 50M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | Electric focusing 5 X(2.7-13.5mm) | ||
| Pixels | 6MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | XMEYE, ICsee | ||
| POE | Support IEEE 802.3af | ||
| WIFI | NO | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Audio | yes | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Intelligent analysis | Support humanoid detection and tripping wire detection, support custom number statistics (need NVR support), face detection and other intelligent functions | ||
| function | Support WEB configuration, OSD, motion detection;After the movement detection alarms the center, the screen pops up linkage | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/VMS/Web | ||
| Language | Chinese Simplified,English, Russian language,Etc. | ||
| General | |||
| Housing | Metal ,IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | 220(W) x 83(H) x 73(D)mm | ||
| Weight | 1200g | ||
| Model NO. | RV-B8VIP800SND | ||
| Camera | |||
| Image Sensor | IMX415 1/2.8" SONY Sensor | ||
| Main processor | NT98566 | ||
| Resolution | 4K/17fps, 5.0MP/ 25fps, 4MP,2MP/ 25fps , | ||
| Effective Pixels | 8MP | ||
| Compression | H.265+/H.264 | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | Color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| soft light | 8pcs IR LED+8pcs Warm Light LED | ||
| Infrared Distance | 80M | ||
| soft light control | Auto Control | ||
| LENS | |||
| Length | 5 X（2.7-13.5mm) | ||
| IR Cut Filter | yes | ||
| Pixels | 8MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF | ||
| P2P | xmeye pro/ICsee | ||
| POE | Support IEEE 802.3af | ||
| Intelligence | Supporting Human shape detection, face detection,Car shape detection | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT )/Double light | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/Web/VMS | ||
| Language | Chinese Simplified, Chinese Traditional, English, Etc.... | ||
| General | |||
| Housing | Metal ,IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 500mA | ||
| Dimension | 280(W) x 92(H) x 92(D)mm | ||
| Weight | 1200g | ||
