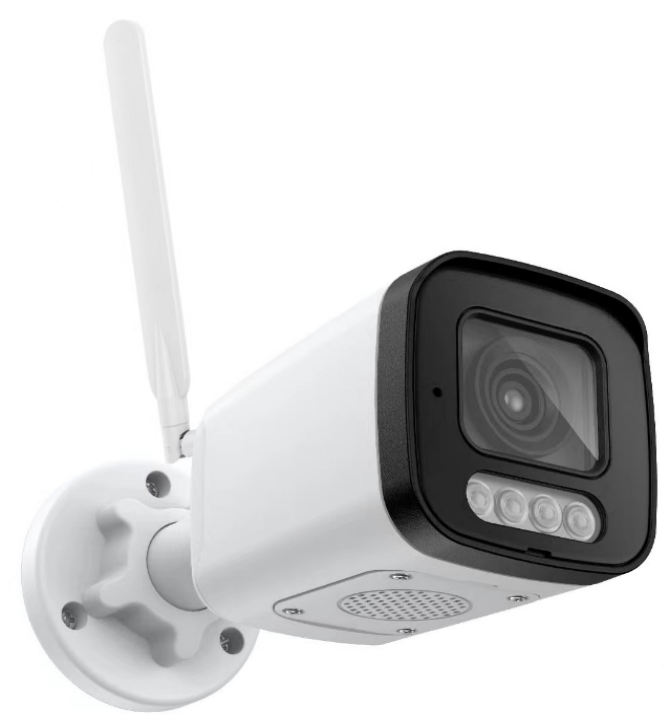

RV-VD4ANIP500WF
3.6mm/F1.6
0.00
0.00
Product Description
3.6mm/F1.6
| Model NO. | RV-VD4ANIP500WF | ||
| Camera | |||
| Image Sensor | SC5335P | ||
| Main processor | XM550AI | ||
| Resolution | 5.0MP | ||
| Effective Pixels | 2592*1944（12FPS) | ||
| Compression | H.265+/.265/H.264/MJPEG | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/50-1/10000Sec; NTSC 1/60-1/10000Sec | ||
| S/N Ratio | ≥52dB (0.001Lux@F1.2) | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ x 4PCS | ||
| Infrared Distance | 30M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 4mm/F1.6 | ||
| Pixels | 5MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | XMEYE/ICsee | ||
| POE | Support IEEE 802.3af(option) | ||
| WIFI | yes | ||
| WIFI Standard | IEEE 802.11b, IEEE 802.11g,IEEE 802.11n, | ||
| RF Power | 5DB | ||
| Frequency Range | 2.4GHz~2.4835GHz | ||
| audio | Two-way audio | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | yes | ||
| Recording Mode | NVR/vms/Web | ||
| Language | Chinese ,English,Russian, Arabic.etc | ||
| General | |||
| Housing | Metal ,IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 500mA | ||
| Dimension | 173(W)*70(D)*71(H) | ||
| Weight | 450g | ||
