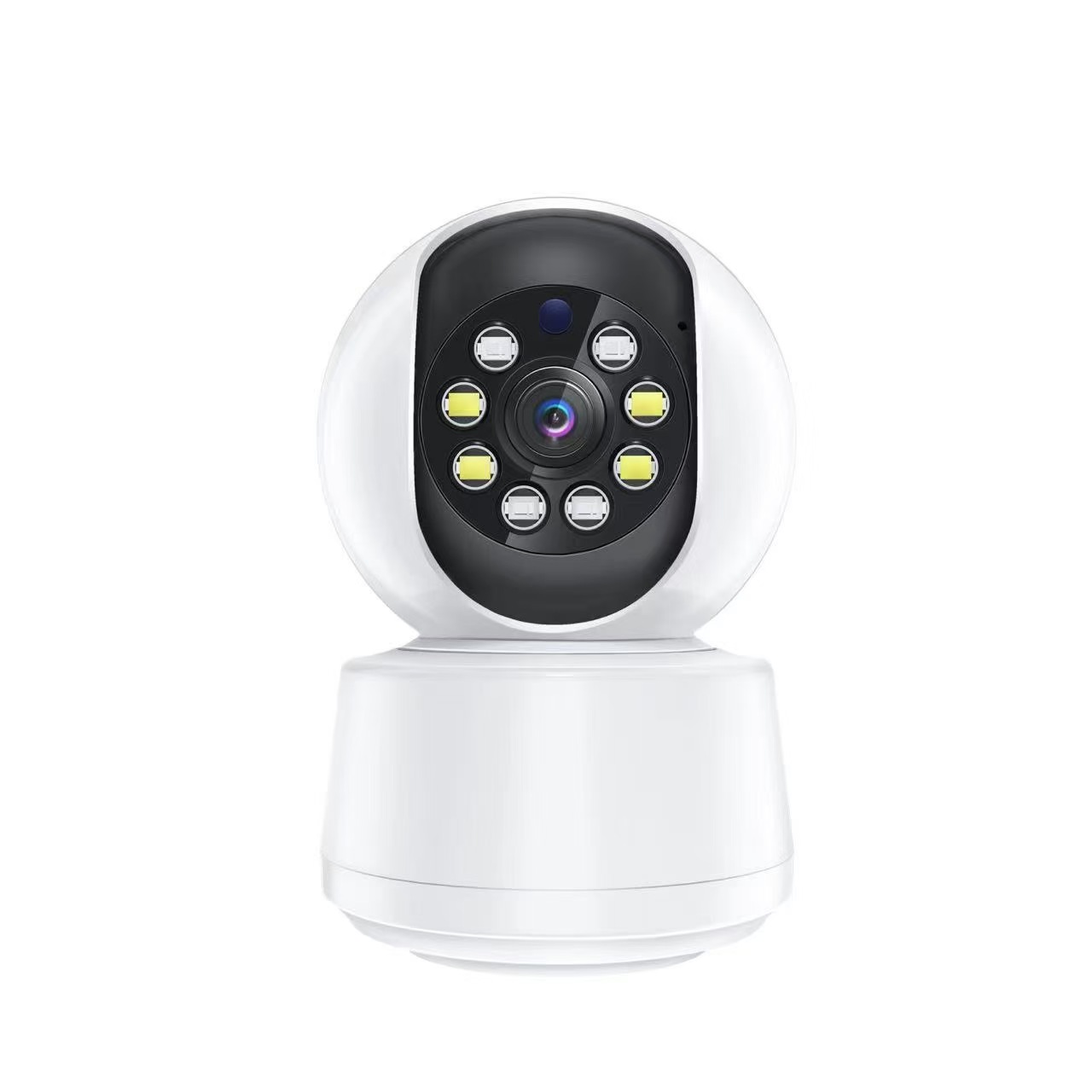

RV-102BI300
3.6mm/F1.6
0.00
0.00
Product Description
3.6mm/F1.6
| RV-102BI300 | |||
| Features: | |||
| *3MP smart cloud camera (excluding TF Card) X 1 * Specification X1 * Screw pack X1 * stents X1 * Power adapter X1 * Power cord X1 | |||
| Technical Parameters | |||
| System | Main Processor | Dual-core 32-bit DSP pure hard compression, watchdog | |
| image sensor | 1/3" high-performance CMOS sensor | ||
| Operation System | Embedded LINUX OS system | ||
| Video Compression | Smart H.265X | ||
| APP | ICSEE(support andriod and IOS) | ||
| Video | High Definition | 3MP | |
| Image resolution | 2304*1296@12FPS&800*448@12FPS | ||
| Minimum illumination | 0.01LUX/F1.2 | ||
| Lens | 3.6mm | ||
| Perspective | 95° | ||
| Turn video | Upside down/Turn around | ||
| Lighting | Light control mode | Full Color/Smart/Infrared Night Vision | |
| Number of lights | 4 PCS IR LED/ 4PCS White LED | ||
| PTZ | PTZ control | Rotation Angle level :355°; Vertical: 90 ° | |
| Turn PTZ | Upside down/Turn around | ||
| Audio | Coding standard | G.711 | |
| Two-way Audio | Support | ||
| Record management | Video file size | ≈6G/day | |
| Record Mode | Manual record, motion detection record, scheduled record, alarm record | ||
| Video storage | TF Card/Cloud | ||
| storage | support TF card（max 256GB) or cloud storage | ||
| Remote playback | Support | ||
| Image capture | Support | ||
| Network | WIFI | 2.4G WIFI 802.11b/g/n | |
| Pairing | Sweep QR code(option)，AP Hotspot Addition,Support for adding devices via Bluetooth. | ||
| Network Protocol | |||
| Extension | Reset key | Support | |
| Human tracking | Support | ||
| 360degree coordinate positioning | Support | ||
| Power Supply | Power | DC 5V 1.5A | |
| power interfac | Micro Type-C | ||
| Work Environment | Suitable place | outdoor、Home、shop、School、factory； | |
| Installation mode | Wall hanging, lifting, flat | ||
| Working Temperature | -20℃－＋55℃ | ||
| Working humidity | 10%－90% | ||
| Packing box size(mm)/weight(kg) | 179*100*90mm/0.35KG | ||
| Outer box size(mm)/weight(kg) | 435*355*465mm/ 40pcs/15 KG | ||
