RV-MSKD4NIP600
3.6mm/F1.6
0.00
0.00
Product Description
3.6mm/F1.6
| Features: | ||

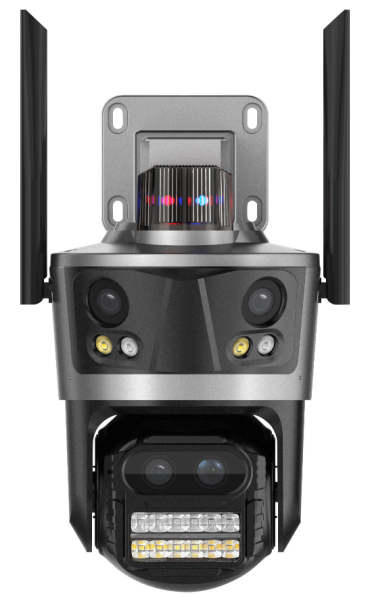

| ■ Gun mechanism+Gun mechanism+Ball mechanism+8x zoom=F1.6 Starlight 3.6MM * 2+F1.6 2.8MM-12MM, four screen multi angle synchronous display of one top 4 ■ New WiFi networking Bluetooth connection AI humanoid 2CPU dual control ■ The upper bracket can be manually rotated to adjust the monitoring direction ■ The dual gun part is designed with 4 high-power diamond shaped lights and a ball machine of 6 * 6, providing stronger supplementary light ■ Ultra low illuminance sensor, eye-catching night vision effect ■ Built in nano graphene heat sink to prevent night vision and hot baths. ■ Supports 8-128G TF card storage, power supply: DC 12V 2A | ||
| Technical Parameters | ||
| Model | RV-MSKB4NIP600 [Four camera gun ball+8X zoom] | |
| master control | 2*Dual-core 32-bit DSP (XM650V200) | |
| sensor | Ball:Two 4mp 1/2.7 "Color 2 * MIS2009 high-performance CMOS sensor Gun : Two 2 mp 1/2.9 "Color 2 * MIS2336P high-performance CMOS sensors | |
| Minimum illumination | Color:0.01Lux @(F1.2,AGC ON); 0 Lux with IR； Black and white:0.001 Lux @ (F1.2,AGC ON),0 Lux with IR | |
| shutter | 1/50(1/60)-1/10000 | |
| ocal distance | Ball: 2.8MM-12MM/Left gun: 3.6MM/Right gun: 3.6MM | |
| noise reduction | Support 2D/3D noise reduction | |
| Video format | H.265AI | |
| resolving power | Ball machine: Main stream: 2560* 1440@12fps ; Sub stream: 800* 448@12fps Gun mechanism one: Main stream: 1920* 1080@12fps ; Sub stream: 640* 360@12fps Gun Machine 2: Main Stream: 1920* 1080@12fps ; Sub stream: 640* 360@12fps | |
| Frame rate | 12 fps | |
| Intelligent analysis | Support human shape detection | |
| Tracking function | Support human shape tracking | |
| light source | Ball: 8 infrared lights + 8 white light lights Left gun: 6 infrared lights + 6 white light lights Right gun: 6 infrared lights + 6 white light lights | |
| Light mode | Starlight full color/infrared night vision/dual light warning | |
| Two-way voice | Support | |
| Cloud storage | Support | |
| Support Agreement | Support NETIP protocol,support bluetooth distribution network | |
| network interface | 10M/100M adaptive Ethernet port | |
| Storage interface | Local TF card (up to 128G) | |
| Reset key interface | Support one-click recovery | |
| Wireless standard | IEEE802.11b, 802.11g, 802.11n | |
| frequency range | 2.4 GHz ~ 2.4835 GHz | |
| power waste | 24W | |
| Product size | 13*22*22CM | |
| Box size | 73*42*48CM/18KG/20pcs | |
| temperature | -10℃~60℃, humidity less than 90% [no condensation] | |
| Power Supply | DC 12V ± 10% | |
| weight | 0.8kg(Gross weight) | |
