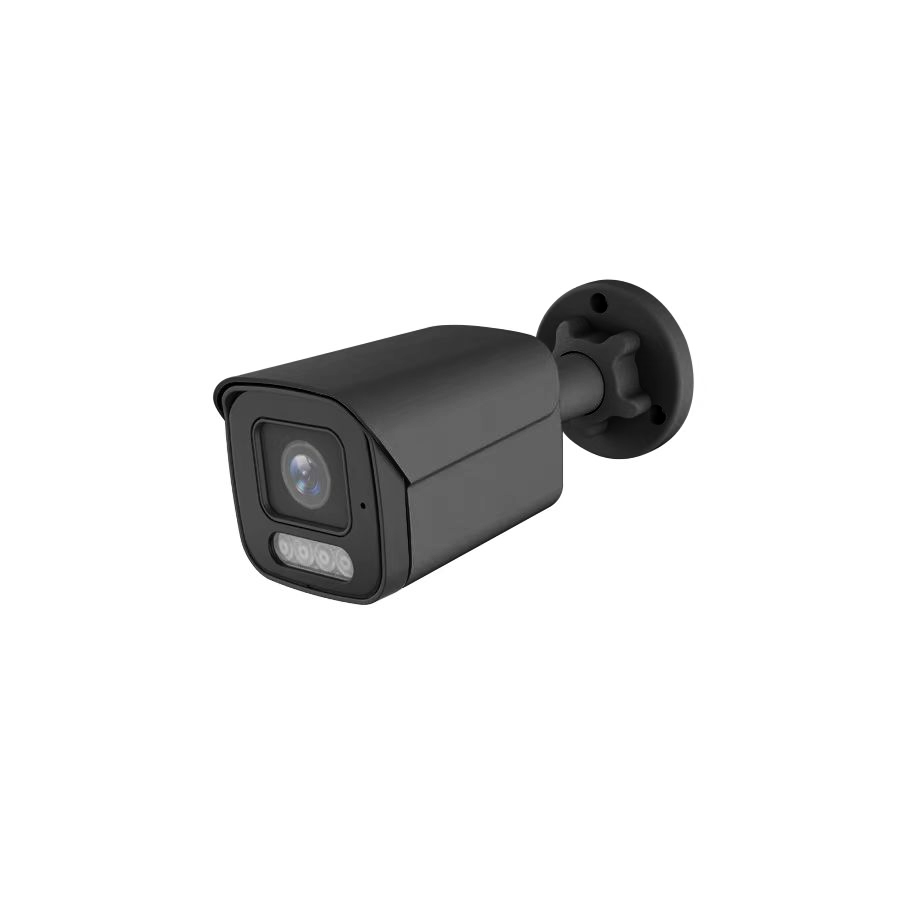

RV-VD4NIP600A
F1.0 lens
0.00
0.00
Product Description
F1.0 lens
| Model NO. | RV-VD4NIP600A | ||
| Camera | |||
| Image Sensor | 1/1.8 CMOS Sensor | ||
| Main processor | AX620U | ||
| Resolution | Main code stream：6M 3200*1800@30fps；4M 2688*1520@30fps；3M2304*1296@30fps；2MP 1920*1080@30fps Sub-code stream：800*448@25fps | ||
| Effective Pixels | 6.0MP (30FPS) | ||
| Compression | H.265+/H.265/H.264 | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | ≥80dB (0.0001Lux@F1.2) | ||
| Minimun Illumination | Color: 0.0001 lux@F1.0,AGC ON; | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Audio Compression | G711A | ||
| Night Vision | |||
| Dual-light LED | 21µ x 4PCS (All-black adjustment, with the option to set full-color ligh | ||
| Infrared Distance | 30M | ||
| IR Status | |||
| IR Power On | Sensor Auto Control | ||
| LENS | |||
| Length | 3.6mm/F1.0(Option 6mm/F1.0) | ||
| Pixels | 8MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF | ||
| P2P | YES (XMEYE, ICsee) | ||
| POE | Support IEEE 802.3af | ||
| Audio | Option | ||
| WIFI | N/A | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/XMEYE/ICSEE/Web | ||
| Language | Chinese ,English, .... | ||
| General | |||
| Housing | Metal （IP67) | ||
| Operation Temperature | -30℃ ~ +50℃ RH95% Max | ||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 450mA | ||
| Weight | 450g | ||
