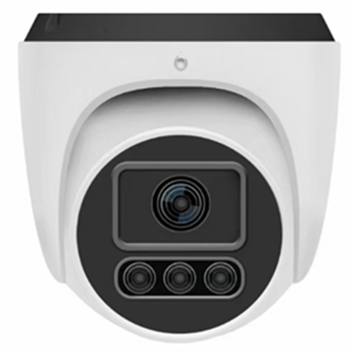

RV-DM3NIP500G
Metal
Double 3015U×3
0.00
0.00
Product Description
Metal
Double 3015U×3
 | |||
| Model NO. | RV-DM3NIP500G | ||
| Camera | |||
| Image Sensor | IMX335 （1/2.8') | ||
| Main processor | GK7205V300 | ||
| Resolution | 6.0MP | ||
| Effective Pixels | 6MP 3072*2048@20fps；5MP 2592*1944@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps | ||
| Compression | H.265+/H.265/H.264/H.264+ | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | ≥52dB (0.01Lux@F1.2) | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ*3PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 3.6mm/F1.6 (optional 2.8mm/F1.6) | ||
| Pixels | 6MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | XMEYE, ICsee | ||
| POE | Support IEEE 802.3af | ||
| WIFI | NO | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Audio | yes | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Intelligent analysis | Support humanoid detection and tripping wire detection, support custom number statistics (need NVR support), face detection and other intelligent functions | ||
| function | Support WEB configuration, OSD, motion detection;After the movement detection alarms the center, the screen pops up linkage | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/VMS/Web | ||
| Language | Chinese Simplified,English, Russian language,Etc. | ||
| General | |||
| Housing | Metal ,IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -20℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | ￠93 x 88(H) mm | ||
| Weight | 450g | ||
