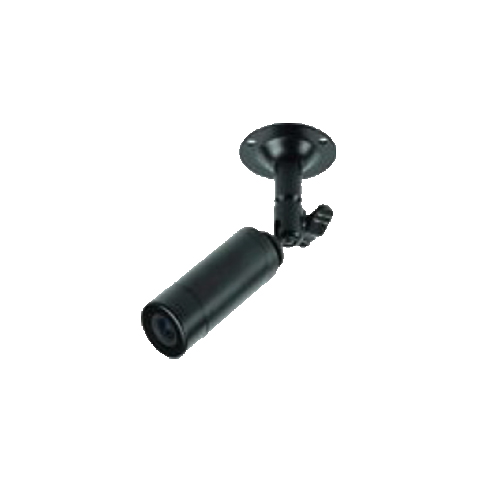

RV-102AHD20
| Camera | RV-102AHD20A | ||
| Image Sensor | 1/2.9" SONY IMX323 | ||
| Image Resolution | 1920*1080 | ||
| Effective Pixels | 2.0MP | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | ||
| S/N Ratio | ≥50dB | ||
| Scanning System | Progressive Scan | ||
| Lens | |||
| Manual Lens | 3.6mm | ||
| Pixels | 3MP | ||
| Auto Iris Support | NO | ||
| Night Vision | |||
| Infrared LED | |||
| Infrared Distance | |||
| IR Status | Under 10 Lux by CDS | ||
| IR Power On | CDS Auto Control | ||
| Camera Features | |||
| Starlight | / | ||
| Day/Night | Yes | ||
| OSD Menu Language | Yes | ||
| White Balance | AUTO / MANUAL | ||
| Gain Control | AUTO | ||
| Noise Reduction | DNR | ||
| Picture Adjustment | Yes | ||
| WDR | Yes | ||
| OSD Support | Option | ||
| UTC | Yes | ||
| Dip Switch | Option | ||
| General | |||
| Housing | Metal | ||
| housing color | white | ||
| Dual Voltage | DC-12V | ||
| IR Cut Filter | YES | ||
| Heater | / | ||
| Audio | / | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 550mA | ||
| Dimension | ￠19 x 46(H) mm | ||
| Weight | 200g | ||
| Camera | RV-102AHD20B | ||
| Image Sensor | 1/2.8" SONY IMX307 | ||
| Image Resolution | 1920*1080 | ||
| Effective Pixels | 2.0MP | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | ||
| S/N Ratio | ≥50dB | ||
| Scanning System | Progressive Scan | ||
| Lens | |||
| Manual Lens | 3.6mm | ||
| Pixels | 3MP | ||
| Auto Iris Support | NO | ||
| Night Vision | |||
| Infrared LED | |||
| Infrared Distance | |||
| IR Status | Under 10 Lux by CDS | ||
| IR Power On | CDS Auto Control | ||
| Camera Features | |||
| Starlight | / | ||
| Day/Night | Yes | ||
| OSD Menu Language | Yes | ||
| White Balance | AUTO / MANUAL | ||
| Gain Control | AUTO | ||
| Noise Reduction | DNR | ||
| Picture Adjustment | Yes | ||
| WDR | Yes | ||
| OSD Support | Option | ||
| UTC | Yes | ||
| Dip Switch | Option | ||
| General | |||
| Housing | Metal | ||
| housing color | white | ||
| Dual Voltage | DC-12V | ||
| IR Cut Filter | YES | ||
| Heater | / | ||
| Audio | / | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 550mA | ||
| Dimension | ￠19 x 46(H) mm | ||
| Weight | 200g | ||
