Model no.

RV-101AI200

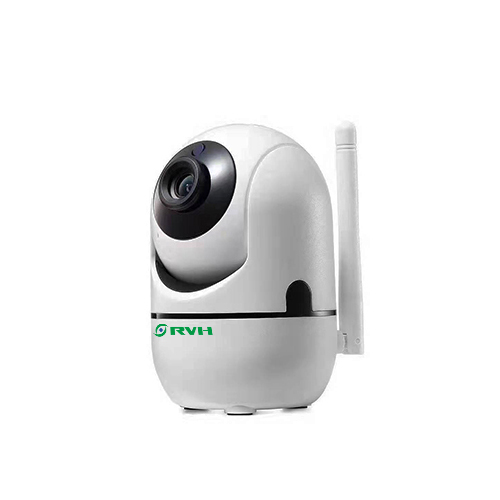

Type

2.4G Wifi Camera

Main processor

Hi3518EV300

Operating system

Embedded LINUX operating system

Image sensor

1/2.9 SC 2232H

Video coding standard

H.265

System standard

PAL/NTSC (APP selection)

Effective resolution

1920*1080/1280*720/680*480

Effective Pixels

2.4 MegaPixels

Video frame rate

25fps

Video stream

135kbps-2048kbps

Signal to noise ratio

Signal to noise ratio ≥69dB

Minimum illumination

Day mode 1Lux, night vision mode 0.01Lux

Day and night mode

External control

Backlight compensation (BLC)

AUTO

Automatic white balance (AWB)

AUTO

Automatic Electronic Shutter (AES)

AUTO/ 1/50（1/60）-1/100,000sec

Video output

EasyVMS client/mobile APP client

Motion Detection

stand by

Capture function

stand by

Coding standard

G.711U

Audio input

Built-in onboard microphone MIC

Audio output

External 8Ω/MAX 1.5W speaker

Video mode

Mobile video, alarm video, timed video, human video

Video saving

TF card

Alarm input/output

not support

Alarm trigger

Human alarm, motion detection alarm, speaker alarm, alarm video, capture, send email

Network module

RTL (built-in FPC film antenna / 2.4G rod external antenna)

Wifi protocol

Support for 802.11 b/g/n

Wifi transmission distance

Straight line transmission 10m-30m (depending on WIFI signal)

TF card capacity

Maximum support 128GB (common FAT32 format)

Package dimensions

140*85*95mm
