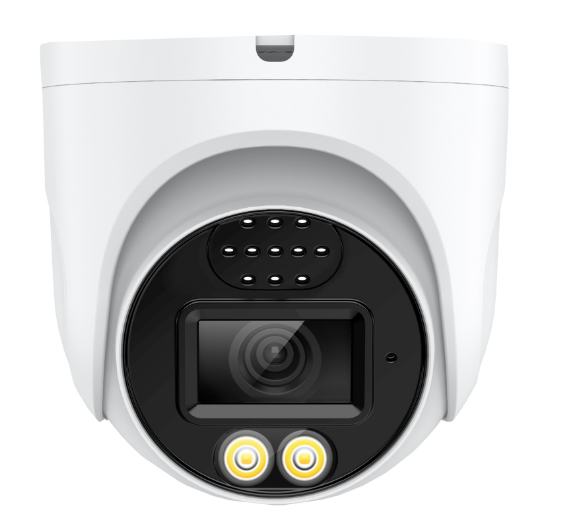

RV-NB2 Series
Metal IP67
Metal IP67
| Model NO. | RV-NB2NIP200S | ||
| Camera | |||
| Image Sensor | IMX307 | ||
| Main processor | GK7502V200 | ||
| Resolution | Main code stream：2304*1296@20fps,1920*1080@25fps Sub-code stream：800*448@25fp | ||
| Effective Pixels | 3.0MP (20FPS) | ||
| Compression | H.265+/H.265/H.264 | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | ≥80dB (0.0001Lux@F1.2) | ||
| Minimun Illumination | Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Audio Compression | G711A | ||
| Night Vision | |||
| Dual-light LED | 21µ x 2PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 3.6mm/F1.6(Option 2.8mm/F1.6) | ||
| Pixels | 3MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF | ||
| P2P | YES (XMEYE, ICsee) | ||
| POE | Support IEEE 802.3af | ||
| Two-way Audio | yes | ||
| SD Card Slot | Supports a maximum of 512GB SD card | ||
| Red and blue lights for warning | Option | ||
| Hard reset | yes | ||
| WIFI | N/A | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/XMEYE/ICSEE/Web | ||
| Language | Chinese ,English, ETC.... | ||
| General | |||
| Housing | Metal （IP67) | ||
| Operation Temperature | -30℃ ~ +50℃ RH95% Max | ||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 450mA | ||
| Weight | 400g | ||
| Camera | RV-NB2NIP400G | ||
| Image Sensor | SC5239S | ||
| Main processor | GK7205V210 | ||
| Resolution | 4.0MP | ||
| Effective Pixels | 2560*1440 | ||
| Compression | H.265+/H.265/H.264/MJPEG | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| Min Illumination | 0.001Lux | ||
| S/N Ratio | ≥52dB | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ*2PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | F1.6 3.6mm | ||
| Pixels | 4MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | optional | ||
| POE | Optional, Support IEEE 802.3af | ||
| Audio | optional | ||
| WIFI | N/A | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| WDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/UC（Option,VMS)/Web | ||
| Language | Chinese Simplified, Chinese Traditional, English, | ||
| Housing | Metal, IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | ￠93 x 85(H) mm | ||
| Weight | 400g | ||
| Camera | RV-NB2NIP500G | ||
| Image Sensor | IMX335 | ||
| Main processor | GK7205V300 | ||
| Resolution | 6.0MP | ||
| Effective Pixels | 2592*1944 | ||
| Compression | H.265+/H.265/H.264/MJPEG | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| Min Illumination | 0.001Lux | ||
| S/N Ratio | ≥52dB | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ*2PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | star level Lens3.6mm | ||
| Pixels | 6MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | optional | ||
| POE | Optional, Support IEEE 802.3af | ||
| Audio | optional | ||
| WIFI | N/A | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| WDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/UC（Option,VMS)/Web | ||
| Language | Chinese Simplified, Chinese Traditional, English, | ||
| Housing | Metal, IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | ￠93 x 85(H) mm | ||
| Weight | 400g | ||
| Model NO. | RV-NB2NIP800E | ||
| Camera | |||
| Image Sensor | SC8239 | ||
| Main processor | NT98566 | ||
| Resolution | Main code stream：8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP 1920*1080@25fps Sub-code stream：800*448@25fps | ||
| Effective Pixels | 8.0MP (15FPS) | ||
| Compression | H.265+/H.265/H.264 | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| S/N Ratio | ≥80dB (0.0001Lux@F1.2) | ||
| Minimun Illumination | Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Audio Compression | G711A | ||
| Night Vision | |||
| Dual-light LED | 21µ x 2PCS | ||
| Infrared Distance | 20M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 3.6mm/F1.6(Option 2.8mm) | ||
| Pixels | 8MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF | ||
| P2P | YES (XMEYE, ICsee) | ||
| POE | Support IEEE 802.3af | ||
| Two-way Audio | yes | ||
| SD Card Slot | Supports a maximum of 512GB SD card | ||
| Red and blue lights for warning | Option | ||
| Hard reset | yes | ||
| WIFI | N/A | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Smart Phone | iPhone, iPad, Android, Android Pad | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/XMEYE/ICSEE/Web | ||
| Language | Chinese ,English,etc.... | ||
| General | |||
| Housing | Metal （IP67) | ||
| Operation Temperature | -30℃ ~ +50℃ RH95% Max | ||
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 450mA | ||
| Weight | 400g | ||
| Size | ￠93 x 85(H) mm | ||
