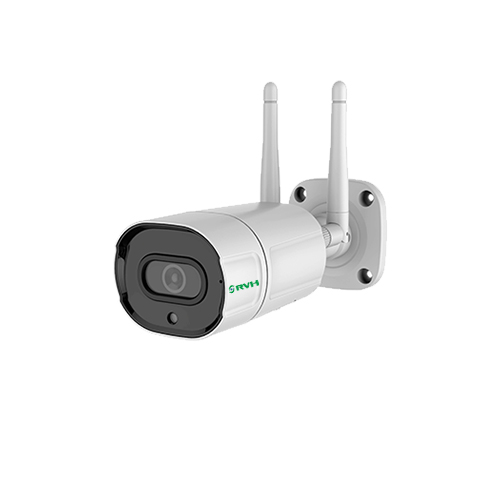

RV-LN36NIPWF
21µX4PCS IR LED
21µX4PCS IR LED
| Camera | RV-LN36NIP300WF | ||
| Image Sensor | SC3335 | ||
| Main processor | XM535 | ||
| Resolution | 3.0MP | ||
| Effective Pixels | 2560*1440 | ||
| Compression | H.265+/H.265/H.264/MJPEG | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| Min Illumination | 0.01Lux F1.2 | ||
| S/N Ratio | ≥52dB | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ*4PCS | ||
| Infrared Distance | 30M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 3.6mm | ||
| Pixels | 4MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | optional | ||
| POE | Optional, Support IEEE 802.3af | ||
| Audio | Two-way audio | ||
| WIFI | Yes | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| DWDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/Web | ||
| Language | Chinese Simplified, Chinese Traditional, English, Russian, Arabic, French, Korean, Persian, ect. | ||
| Housing | Metal, IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | 148(W) x68(H) x66(D)mm | ||
| Weight | 700g | ||
| Camera | RV-LN36NIP500WF | ||
| Image Sensor | SC5335P | ||
| Main processor | XM550AI | ||
| Resolution | 5.0MP | ||
| Effective Pixels | 2880*1616 | ||
| Compression | H.265+/H.265/H.264/MJPEG | ||
| TV System | PAL/NTSC | ||
| Electronic Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec | ||
| Min Illumination | 0.01Lux F1.2 | ||
| S/N Ratio | ≥52dB | ||
| Scanning System | Progressive | ||
| Video Output | Network | ||
| Night Vision | |||
| Infrared LED | 21µ*4PCS | ||
| Infrared Distance | 30M | ||
| IR Status | Under 10 Lux By CDS | ||
| IR Power On | CDS Auto Control | ||
| LENS | |||
| Length | 3.6mm | ||
| Pixels | 6MP | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP | ||
| ONVIF | Support ONVIF 2.4 | ||
| P2P | optional | ||
| POE | Optional, Support IEEE 802.3af | ||
| Audio | Two-way audio | ||
| WIFI | YES | ||
| Video Delay | 0.3S (Within the Lan) | ||
| IE Brower | IE8-11, Google Chrome, Firefox, Safari, Mac Safari | ||
| Camera Features | |||
| Day/Night | Color/ B&W (IR-CUT ) | ||
| Image Config | Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control) | ||
| BLC | Support | ||
| WDR | Support | ||
| Motion Detection | Support | ||
| Privacy Masking | 3 Rectangular Zone | ||
| Recording Mode | NVR/Web | ||
| Language | Chinese Simplified, Chinese Traditional, English, Russian, Arabic, French, Korean, Persian, ect. | ||
| Housing | Metal, IP67 | ||
| IR Cut Filter | YES | ||
| Operation Temperature | -30℃ ~ +60℃ RH95% Max | ||
| Storage Temperature | -40℃ ~ +60℃ RH95% Max | ||
| Power Source | DC12V±10%, 600mA | ||
| Dimension | 148(W) x68(H) x66(D)mm | ||
| Weight | 700g | ||
