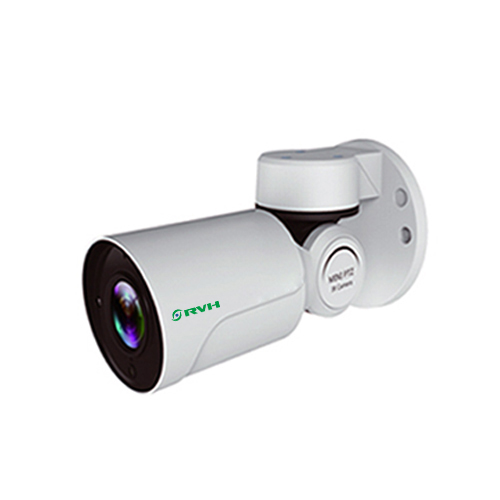

RV-BZ200VIP
    Publish time 2017-10-01 09:12

Pan Range: 0°~180°;

Pan Speed:Pan 0-20°/sec,
IR Range 50M



Model NO. RV-BZ200VIPC RV-BZ200VIPC-WF RV-BZ200VIPC1 RV-BZ200VIPC1-WF
Sensor SC2135
DSP Hi318EV200
Resolution 1920*1080
Rotation range Pan 0º-180º ,Tilt 0º~55º
Rotaion speed Pan 0-20°/s,Tilt 0-12º/s
IR range 50M
IR control PWM
Preset No support
Motion detecting Yes
WDR WDR
Lens 3.6mm 2.8-12mm
TF Card No support option, The biggest 64G No support option, The biggest 64G
WIFI No support Yes No support Yes
Compression H.264/H.265M-JPEG
Audio in G7111CH (option)
Audio Out 1 audio (Optional)
P2P androidIphone
Alarm No support
Protocol TCP/IP DHCPNTP,UDPSMTPRTSPARPDDNSPPPoE
Compatibility HIKVISION ,DAHUA, XM NVR , Milestone and AXXON platform
Onvif Support
Power DC12V(2A)
POE No support
Temperature  -40℃~+60℃
Consumption ≤15W
Connector RJ45
protection level IP66
Package Size W168mm*D68mm*H68mm
