21MILX3PCS IR LED

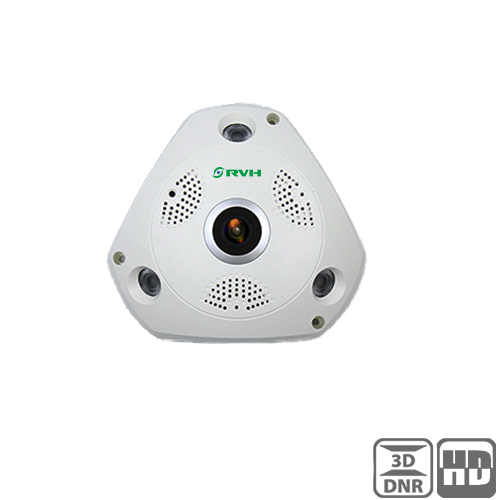

Camera |
RV-MSD3AHDAH |
||
Image Sensor |
1/2.7" CMOS AR0237 |
||
Image Resolution |
1920*1080 |
||
Effective Pixels |
2.0MP |
||
TV System |
PAL/NTSC |
||
Electronic Shutter |
AUTO /1/50~1/50000s |
||
S/N Ratio |
≥50dB |
||
Scanning System |
Progressive Scan |
||
Lens | |||
Manual Lens |
1.8mm |
||
Pixels |
3MP |
||
Auto Iris Support |
NO |
||
Night Vision | |||
Infrared LED |
21MIL*3PCS |
||
Infrared Distance |
30M |
||
IR Status |
Under 10 Lux by CDS |
||
IR Power On |
CDS Auto Control |
||
Camera Features | |||
Starlight |
/ |
||
Day/Night |
Yes |
||
OSD Menu Language |
Yes |
||
White Balance |
AUTO / MANUAL |
||
Gain Control |
AUTO |
||
Noise Reduction |
3DNR |
||
Picture Adjustment |
Yes |
||
WDR |
Yes |
||
OSD Support |
Option |
||
UTC |
Yes |
||
Dip Switch |
Option |
||
General | |||
Housing |
Plastic |
||
housing color |
white |
||
Dual Voltage |
DC-12V |
||
IR Cut Filter |
YES |
||
Heater |
/ |
||
Audio |
/ |
||
Operation Temperature |
-20℃ ~ +50℃ RH95% Max |
||
Storage Temperature |
-30℃ ~ +50℃ RH95% Max |
||
Power Source |
DC12V±10%, 550mA |
||
Dimension |
¢154 x 38(H) mm |
||
Weight |
450g |
